Description

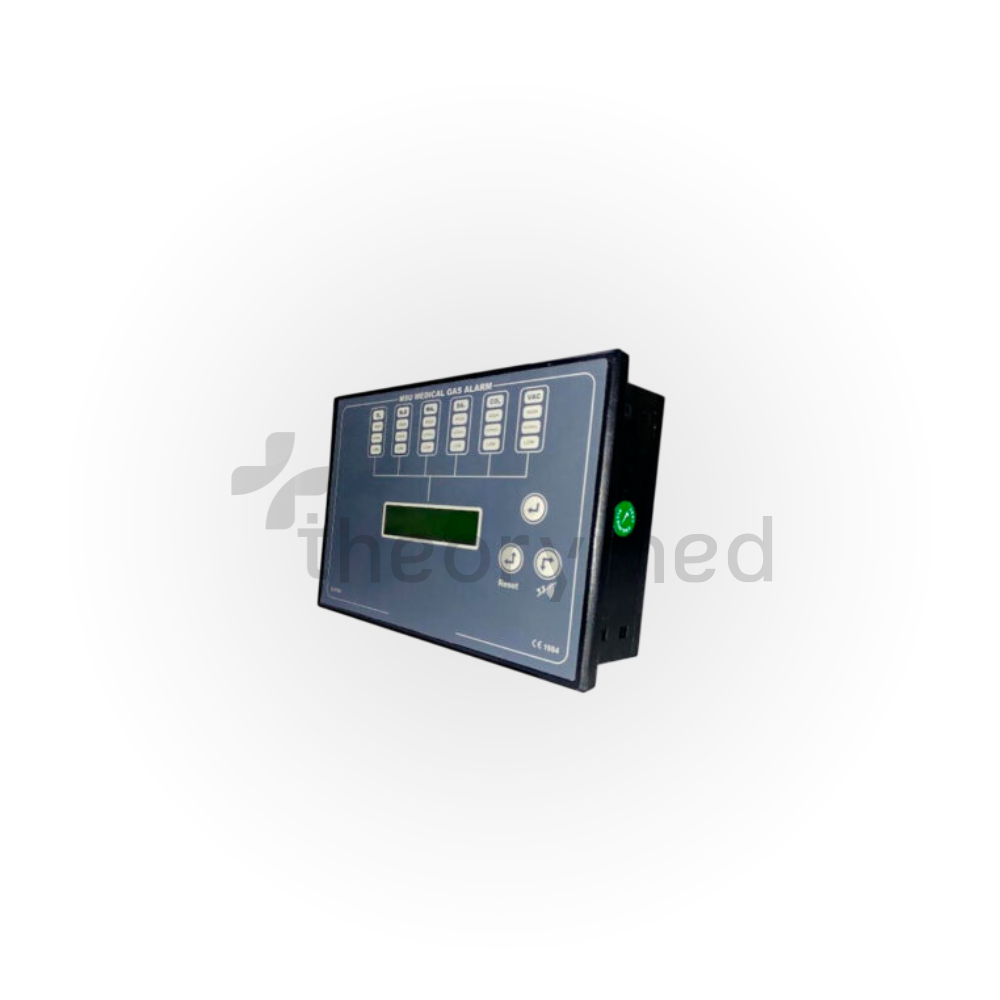

Ensures reliable monitoring of pressure values in medical gas pipelines.
- Compliance with all relevant standards
- Monitoring capability for 5 gases and 1 vacuum service
- Low – normal – high pressure LED for each gas
- Compliance with RS 485 and ModBUS protocols
- Operates on 220 V, 50 Hz electricity
- Digital display of gas pressure
- Adjustable pressure limit values
- Can be mounted on manifold stations to monitor the left ramp, right ramp, emergency support system, liquid oxygen tank, and system pressure
- Can be connected to building automation systems
- Can transfer information to the operating room control panel
- Under normal conditions, these units display the pressure status of medical gases
- Fully electronically controlled, designed with a separate electronic card for each gas, featuring test and cancel buttons to test the system and temporarily mute the alarm sound in case of an alarm.
- If the gas pressure is within normal values, the green LED indicator for that gas is visually and audibly monitored; if the pressure is low or high, the red LED indicator is monitored.
- With its RS 485 protocol-compliant design, it can be monitored in central automation with the controlled zone.
- It enables pressure monitoring on the panel by sending signals to operating room control panels.
- It can also be integrated into Regional Control Units.
Gases and Services
- Oxygen
- Nitrous Oxide
- 50% Oxygen 50% Nitrous Oxide
- Medical Air (4 bar )
- Surgical Air (7 bar)
- Medical Vacuum
- Other gases (laboratory/industrial)
- AGSS Venturi, AGSS Pumped
Installation Options
- Surface-mounted or semi-recessed
- Directly coupled to Regional Control Units
